Slurry Treatment
Plant
The shield method is a construction method for tunneling under the ground using a shield machine.
We are offering a slurry treatment plant for a slurry shield method, which is one type of shield method.
What is the shield method?
A steel frame called a shield machine drives through the ground to excavate tunnel segments and make a main tunnel at the same time by combining those segments.
What is the slurry shield method?
The surface of the tunnel excavated by a shield machine is stabilized with pressurized slurry.
The sand and slurry is transferred to the ground surface through a pipe. Then the sand and slurry is separated. The sand is collected and the slurry is used again.

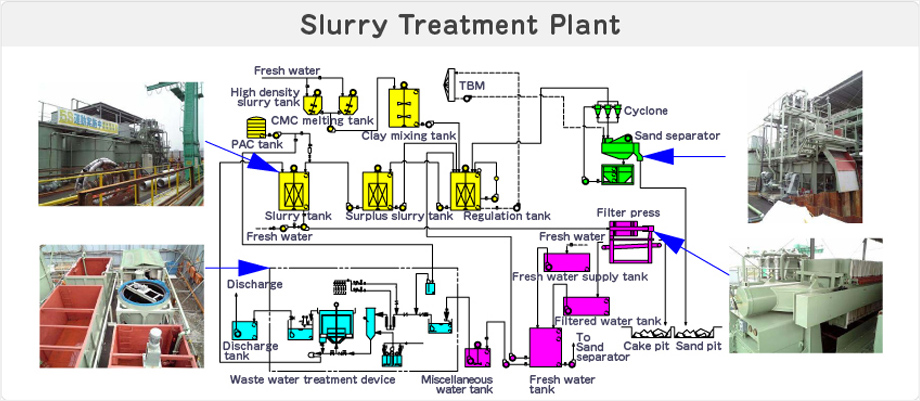

Process Flow
Main Equipment
-
- 01.Vibrating screen
- A device to dehydrate and separate solid matter from mud (gravel and sand) produced during various types of construction.
-
- 02.Filter press
- A device that pressurizes and dehydrates mud produced during construction in order to separate solids and liquids.
-
- 03.Agitating tank
- A tank that contains mud produced during construction with an agitator in it that prevents the deposition of solids.
-
- 04.Waste water treatment device
- A device that adjusts the pH and turbidity of muddy water produced during various types of construction in order to satisfy discharge standards.
Plant management systems
We have various types of management systems that reduce the amount of labor required for plant management.

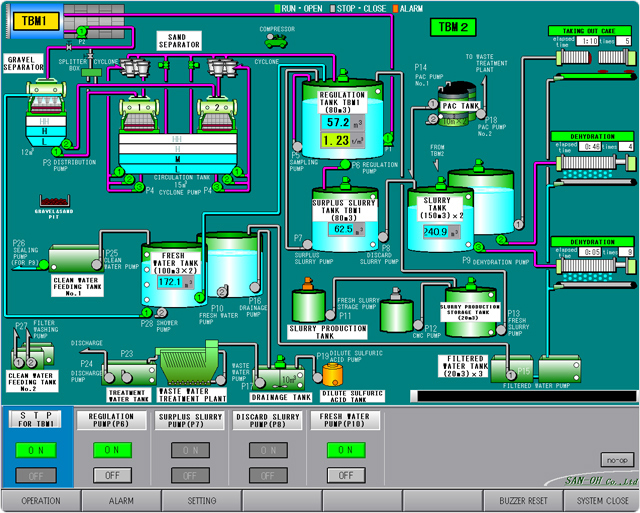

Remote-control maintenance system
This system, consisting of various processing units, enables the centralized management of slurry from a central control room using a variety of instruments.

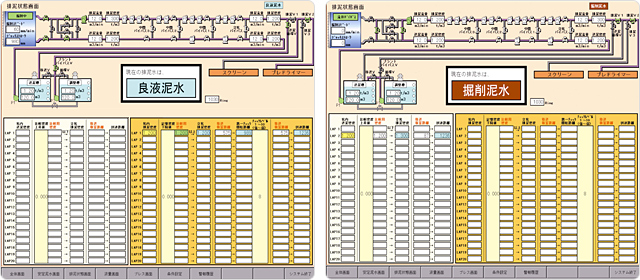

Slurry Treatment Plant for long-distance excavations
This system has been developed to meet the requirements of shield method construction for long-distance excavations.
This system realizes work efficiency at construction sites to reduce costs.

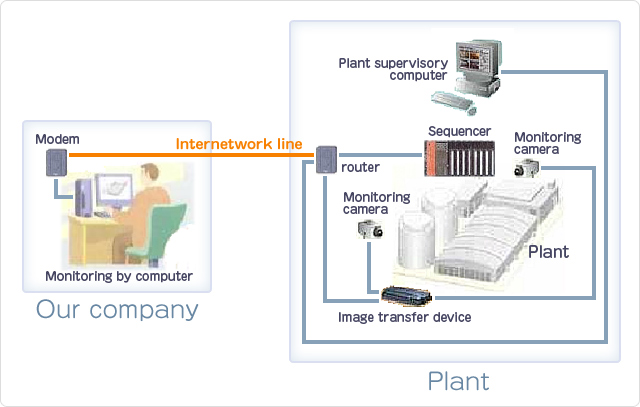

Automatic slurry management system
This system remotely monitors the monitoring computer and sequencer, which are indispensable for plant control.
Operation status and the occurrence of irregularities can be monitored in real time using internetwork line connection.
The conditions of a plant can be monitored and actions can be taken without a site visit if our computer is connected to a computer or programmable controller in the plant
